| 1U
rackmount high quality 2 channel microphone amplifier with DI Input. |
| |
|
|
| |
| The features of
this microphone amplifier consist of low noise and low distortion.
It offers switched gain controls for high accuracy level setting (4
dB steps), D.I. Input (high impedance), level indication, high pass
filter (switchable), 26dB pads (switchable), phase reversal and 48v
phantom supply (switchable). |
| |
|
|
| |
| Frequency
response: |
10Hz
- 150KHz ± 0.25dB |
|
Mic
gain range: |
22dB
- 66dB in 4dB steps.
[pad in -4dB - 40dB] |
| Distortion: |
Less
than 0.01%
Typ, 0.001% 1KHz @ +20dBu o/p |
|
High
pass filter: |
68Hz @ 12dB per octave (Switchable
bothchannels)
|
| Noise: |
25
microvolts [-110dB ref
+20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain]. |
|
Phase
reversal: |
Both channels (Switchable)
|
| 48v
phantom: |
Both
channels (Switchable) |
|
Level
indication: |
Red LED +18dB
Green LED +8dB
Green LED 0dB
|
| 26dB
pads: |
Both
channels (Switchable) |
|
Clipping
level: |
+29
dBu |
| D.I.
input: |
Channel 1 High impedance
[1.8 Meg Ohms]
|
|

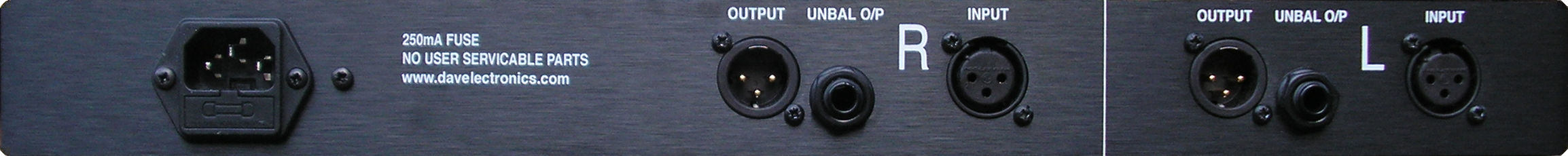

Connectors: |
IEC
mains
Input - XLR x 2, Jack x 1 (DI Input)
Output - XLR x 2 (bal), Jack x 2 (unbal) |
| D.I.
gain range: |
Channel
1 only -8 > 36dB in 4dB steps |
|
Dimensions: |
19"
1U rack mount. Depth = 150mm |
|
|
|
Price: |
P.O.A. |
|
|
|
|
|
