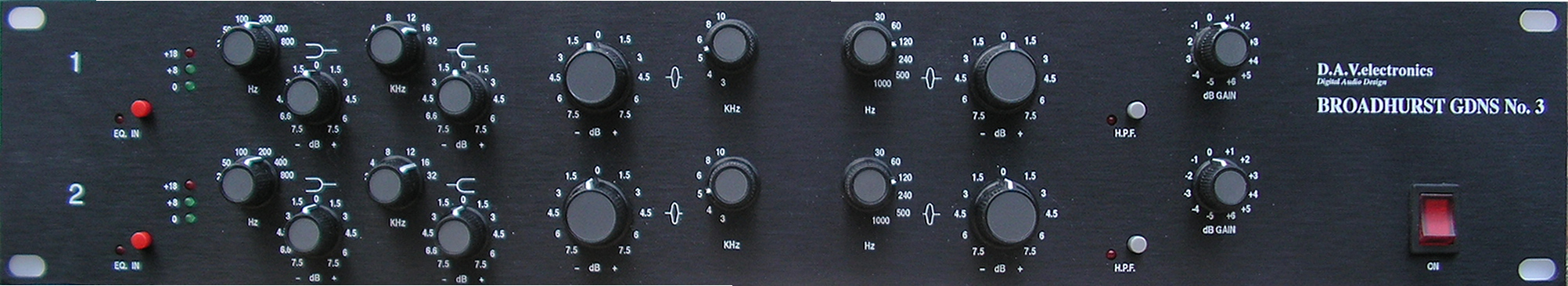

| 2U
rackmount high quality stereo mastering equaliser. |
| |
|
|
| |
|
Balanced inputs and outputs, 2U Rackmount
Chassis.
Low noise and distortion, switched gain [3dB steps]. Switched frequencies
on step, Resonant, High and low pass filters. Switched cut and boost
[1.5 dB steps] +/- 7.5dB.
|
| |
|
|
| |
| Clipping Level: |
+29dBu |
|
Low Frequency
Resonant: |
@ 30Hz, 60Hz,
120Hz, 240Hz and 500Hz [Switched] +/-7.5dB [In 1.5dB steps]. |
| Level Indication: |
Red L.E.D's set
8 dB below clipping.
Green L.E.D's set +8 dBu and +18 dBu. |
|
High Frequency
Resonant: |
@ 3KHz, 4KHz,
5KHz, 6KHz, 8KHz and 10KHz [Switched] +/-7.5dB [In 1.5dB steps]. |
| Gain
Range: |
-24dB
>> +6dB in 3dB steps. |
|
Low
Pass Filter: |
@
10KHz, 12KHz, 14KHz, 16KHz and 20KHz.
Slope 36dB / Octave |
| Low Frequency
Step: |
@ 50Hz, 100Hz,
200Hz, 400Hz and 800Hz. [Switched] +/-7.5dB [In 1.5dB steps]. |
|
High Pass Filter: |
@ 12.5Hz, 25Hz,
50Hz and 100Hz.
Slope 18dB / Octave |
| High Frequency
Step: |
@ 4KHz, 8KHz,
12KHz, 16KHz and 32KHz [Switched] +/-7.5dB [In 1.5dB steps]. |
|
Price: |
P.O.A. |
| |
|
