| 1U
rackmount high quality channel strip with D.I. |
| |
|
|
| |
|
The BG No 5
MK II consists of 3 elements from the BG range:
1. BG No 1U
Mic Amp + DI
2. BG 503 Equaliser
3. BG 504 Optical Limiter / Compressor (Features: Low noise / distortion,
stereo link, LED G.R. meter)
All controls
are either switched or are detented for settings recall.
|
| |
|
|
| |
| Mic
Amp + D.I. |
| |
|
|
|
|
| Frequency
response: |
10Hz
>> 150KHz ± 0.25dB |
|
Mic
gain range: |
22dB
>> 66dB in 4dB steps.
[pad in -4dB - 40dB] |
| Distortion: |
Less
than 0.01%
Typ, 0.001% 1KHz @ +20dBu o/p |
|
High
pass filter: |
68Hz @ 12dB per octave
|
| Noise: |
25
microvolts [-110dB ref
+20 dBu. Bandwidth 10Hz-18KHz input loaded 150 ohms, 32dB gain]. |
|
Phase
reversal: |
Switched
|
| 48v
phantom: |
Switched |
|
26dB
pads: |
Switched |
| D.I.
input: |
High
impedance
[1.8 Meg Ohms] |
|
D.I.
gain range: |
-4
> 40dB in 4dB steps |
| |
|
|
|
|
| Equaliser |
|
|
|
|
| |
|
|
|
|
| Gain: |
Unity
Gain |
|
Low
Frequency Step: |
12.5Hz,
25Hz, 50Hz, 100Hz, 200Hz and 400Hz +/-8dB |
| High
Frequency Step: |
2KHz,
4KHz, 8KHz, 12KHz, 16KHz and 32KHz +/-8dB |
|
Mid
Frequency Resonant: |
Q
= 1.5
240Hz, 500Hz, 750Hz, 3KHz, 4KHz and 5KHz +/-12dB |
| |
|
|
|
|
| Optical
Limiter / Compressor |
|
|
|
| |
|
|
|
|
| Ratio: |
2:1
>>>10:1 |
|
Input
Gain: |
+8dB
(adjustable) |
| Threshold: |
+18
>>> -2dB |
|
Gain
Make Up: |
+14dB
(adjustable) |
| Recovery
Time: |
0.5
>>> 3 seconds |
|
|
|
| |
|
|
|
|
| Overall
Specifications |
|
|
|
| |
|
|
|
|
| Level
Indication: |
Red
LED +18dB
Green LED +8dB
Green LED 0dB |
|
Gain
Reduction: |
Green
LED -2, -4, -8 and -12dB |
| Clipping
Level: |
+29dBu |
|

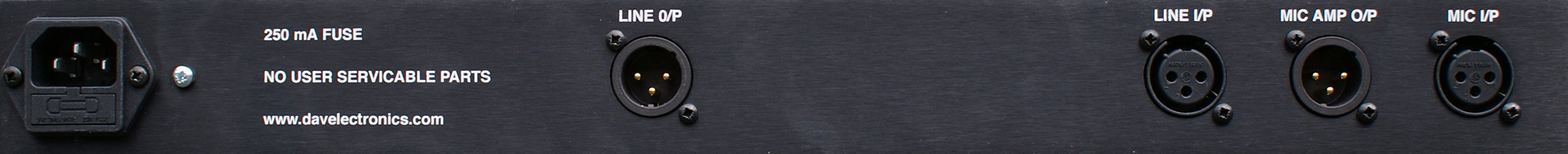

Connectors: |
Input - XLR, Jack (DI Input)
Output - XLR
IEC mains / Power |
| Dimensions: |
19"
1U rack mount
depth 150mm [6 inches] |
|
Price: |
P.O.A. |
